价 格
订货量
￥26万
1 - 1
￥25万
价格为商家提供的参考价，请通过"获取最低报价"
获得您最满意的心理价位~
≥2
| 品牌：唯拓激光 | 型号：GF-6040/GF-5050 | 控制方式：数控 |
| 作用对象：金属 | 电流：交流 | 用途：切割 |
| 产品别名：唯拓光纤激光切割机 | 最大线割速度：1000mm/s | 适用材质：碳钢，不锈钢，镀锌板，合金，钛，铝，黄铜，紫铜，金，银 |
| 最大刻线深度：10mm | 定位精度：+-0.03mm | 快进速度：5000mm/min |
| 切割头：金运/Precitec/Laser mech | 空程/加工速度：90米/45分 | 加工幅面：1300mm*900mm |

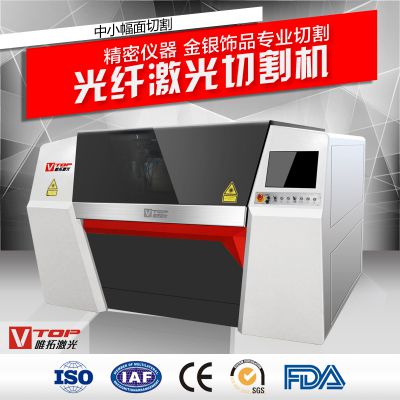

专业精密切割光纤激光切割机
主 要 特 征 |
| 封闭式设计符合CE标准，加工*** |
Enclosure design meets CE standard, processing is safe and reliable |
| 采用双驱全闭环的系统构架，配备进口开放式数控系统，准高速设计，生产效率更高 |
The double ball screw closed-loop system and imported open CNC system and enable high working efficiency. |
| 标配金属专业自动排版软件（含材料管理、加工工艺优化等功能），提供工艺参数库，让操作者更简单，管理更容易。 |
Standard collocation of automatic nesting software (including meterial management and optimized processing technology) and database of process parameters is provided for easy operation and simple management. |
| 优化的光学镜片，特殊设计的喷嘴和传感器技术，使切割更流畅，更稳定。 |
Optimized optical lens, specially designed nozzle and sensor technology realize smoother and more stable cutting. |
| 针对高速运动需求，采用花岗石材料做导向基座，精度和稳定性更高。 |
Aiming at high speed cutting, granite base is used to meet high prec***n and stable performance. |
| 标配500W光纤激光器，选配300W-2000W光纤激光器，实现中幅面的***高速切割。 |
Standard collocation of 500W fiber laser generator and optional 300W-2000W fiber laser generator realize middle-size high prec***n and high speed cutting. |
切 割 厚 度 |
| Materia 金属 | 500w | 700w | 1000w | 2000w | 3000w | 4000w |
| Carbon stell 碳钢 | 6mm | 8mm | 10mm | 15mm | 18-20mm | 18-20mm |
| Stainless steel 不锈钢 | 3mm | 4mm | 5mm | 8mm | 10mm | 10mm |
| Aluminum 铝 | 1mm | 3mm | 4mm | 6mm | 8mm | 10mm |
| Brass 黄铜 | 1mm | 2mm | 4mm | 5mm | 5mm | 5mm |
| Copper 铜 | 1mm | 2mm | 3mm | 4mm | 4mm | 4mm |
| Galvanized steel 镀锌钢 | 1mm | 2mm | 4mm | 4mm | 4mm | 4mm |
