价 格
订货量
￥60万
1 - 1
￥58万
价格为商家提供的参考价，请通过"获取最低报价"
获得您最满意的心理价位~
≥2
| 品牌：唯拓激光 | 型号：P2060A/P3080A | 控制方式：数控 |
| 作用对象：金属 | 电流：交流 | 用途：切割 |
| 产品别名：光纤激光切割机 | 最大线割速度：1000mm/s | 适用材质：圆管，方管，矩形管，椭圆管，腰圆管等其它金属管材 |
| 最大刻线深度：20mm | 定位精度：+-0.02mm | 快进速度：≤72000mm/min |
| 切割头：进口光纤专用切割头 | 切割管长：6m/8m | 切割管径：20-200mm/20-30mm |
自动上料个环节简图 |
主 要 特 征 |

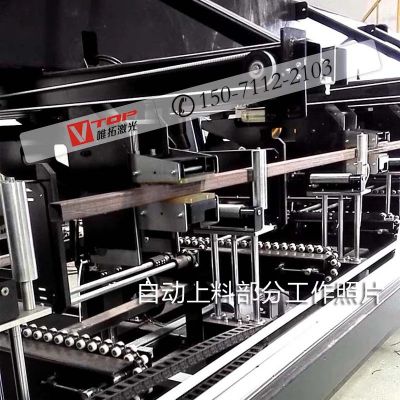

| 全自动上料系统 / AUTOMATIC BUNDLE LOADER 圆管、矩形管等管材可全自动上料，无需人工干预。异型管可进行人工辅助半自动上料。 |
Round pipe, rectangular pipe and other pipes can be fully automated loading, without human intervention. Other shapes pipe can be semi-automatic feeding artificially.
|
| 支持上料料捆800X800mm |
Max Loading Bundle 800*800mm
|
| 重量2.5吨 |
Max Loading Bundle Weight 2500kg
|
| 送料机械手与框架和料条输送环节的总宽控制在2200mm，总高控制在2300mm，高度不超过2500mm。***可以整体进集装箱 |
The total feed manipulator with frame and strand width control transport links in 2200mm, total height control in 2300mm, maximum height of not more than 2500mm. So overall into containers
|
| 上料带支撑架便于拆卸 |
The tape support frame for easy removal
|
| 送料机械手主体与链条输送环节结构一体化设计，便于调试运输 |
Feeding robot body with a chain conveyor link structure integrated design, easy to debug transport
|
| 系统中设计的气动元器件必须台湾亚德客或其他更高端品牌，PLC控制，传感器等选用欧姆龙，施耐德等知名***。***系统的稳定性及外贸标准 |
The pneumatic system components used AirTAC or other more high-end brand, PLC control, sensors and other selected Omron, Schneider and other well-known brands. Ensure the stability of the system and export standard
|
| 自动接料装置 / AUTOMATIC COLLECTING 1、自动升降支撑，接料入筐 |
Automatic elevating support, receive tube and scrap into the basket
|
| 2、变径支撑可视刻度可快速根据管径调节支撑直径 |
Visual scale support can adjust support diameter quickly according to pipe diameter
|
| 3、支撑升降装置节省装夹时间，***同心度，减少管材晃动 |
Visual scale adjustable support lifting device saves feeding time, ensures concentricity, prevents pipe swinging
|
